1. Product Details

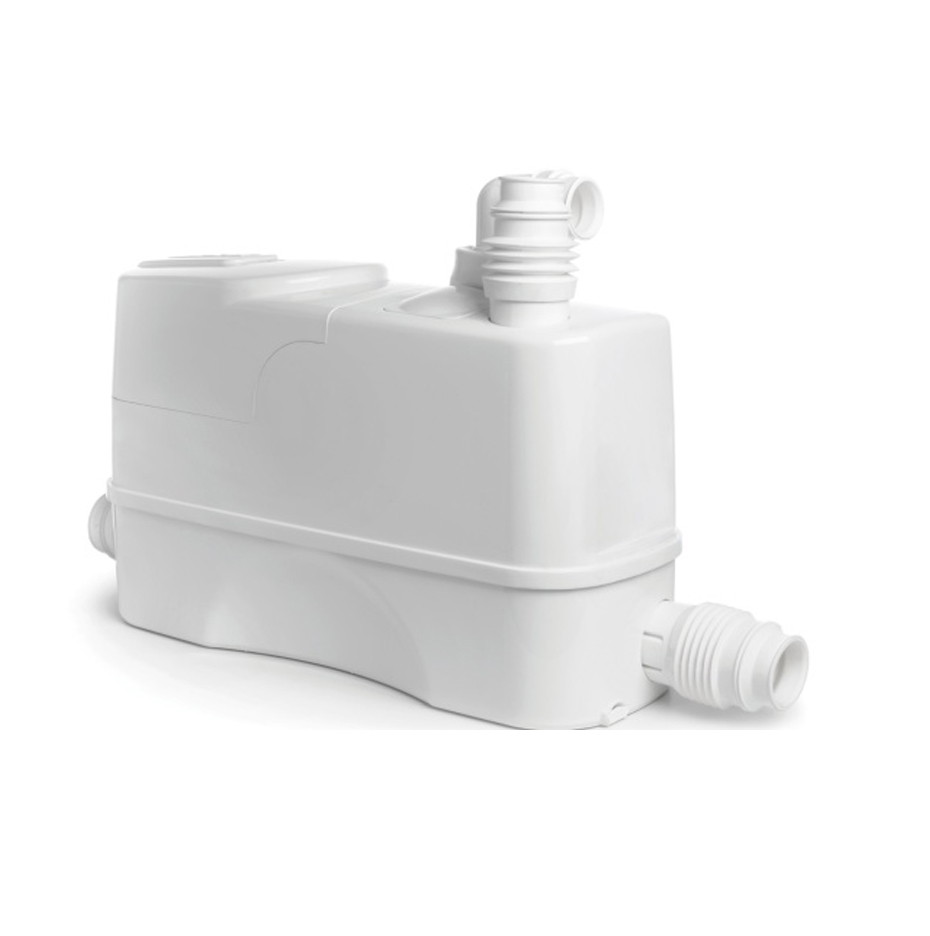

The DAB Genix VT 030 is an automatic lifting station designed to manage wastewater from sinks, showers, washing machines, and dishwashers where gravity drainage is impractical. It features a compact, noise-reduced design, high-temperature tolerance (up to 90°C), and integrated non-return valves for efficient operation in residential or light commercial settings.
2. Product Features
- Material: 30% barium-loaded polypropylene tank, stainless steel drive shaft, and fiber-glass PPO impeller.
- Finish: Compact dimensions (346mm H × 456mm W × 178mm D) with IP44 protection grade.
- Performance: Handles liquid temperatures up to 75°C (VT 030) and flows up to 130L/min.
- Certification: Complies with EU safety standards; includes thermal cut-out protection.
- Noise Reduction: Silent operation with optional Comfort versions (5 dB lower).
3. Additional Information
Design & Aesthetics: The Genix VT 030’s sleek, compact form allows discreet installation under sinks or in utility rooms, blending into modern or traditional spaces. Its white polypropylene tank is both durable and visually unobtrusive.

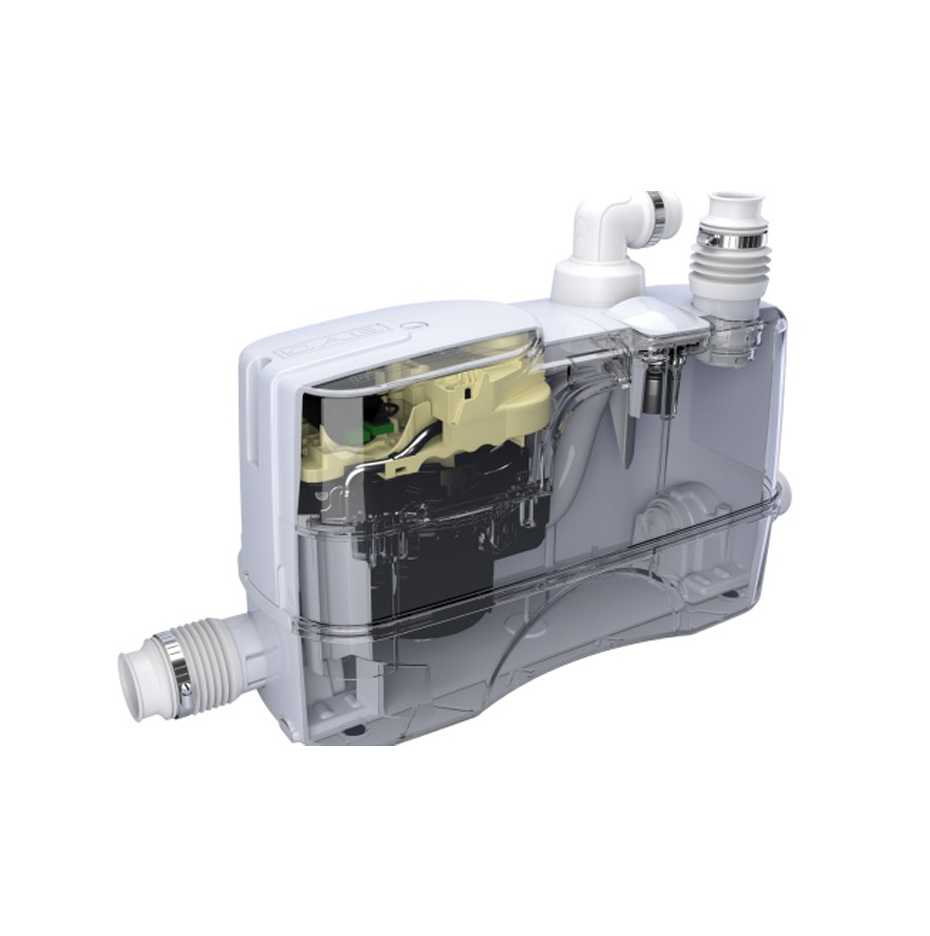

Functionality: Equipped with a grinding system (nickel-plated stainless steel blades) for efficient waste breakdown. The motor unit can be easily detached for maintenance without disassembling the entire system.
Usability: Supports up to three low-drain utilities (e.g., shower, bidet) and includes quick-coupling adaptors for flexible pipe connections.
Maintenance: Features a unique draining tap for clean water removal during servicing. The carbon filter requires annual replacement.
Safety: Integrated thermal protection and anti-flooding alarm (optional) prevent overheating and overflow.
Quality: WRAS-approved materials and 24-month warranty (invalidated by improper installation).
4. Specifications
| Metric | Value |
|---|---|
| Dimensions (H×W×D) | 346 × 456 × 178 mm |
| Weight | 10.3 kg |
| Max Temperature | 75°C (VT 030) |
| Power (P2) | 0.32 kW |
| Flow Rate | 90 m³/hour |
| Voltage | 230V ~ 50Hz |
5. Guarantee Details
| Coverage | Details |
|---|---|
| Warranty Period | 24 months from the invoice date |
| Limitations | Excludes damage from improper installation, foreign objects, or solvents |
| Claims Process | Return for inspection; repairs/replacements at the manufacturer’s discretion |
6. Contents
| Included Items | Notes |
|---|---|
| Genix VT 030 Unit | Pre-assembled with motor and tank |
| Installation Kit | Non-return valves, hose clamps, and adaptors |
| Draining Pipe | For maintenance |
| Quick Guide | Illustrated instructions |
7. About the Brand
DAB Pumps, with over 40 years in water technology, combines innovation with reliability. The Genix series reflects their commitment to efficient, user-friendly solutions for modern sanitation needs. Trusted globally, DAB ensures products like the Genix VT 030 deliver longevity, performance, and effortless integration into diverse environments.
