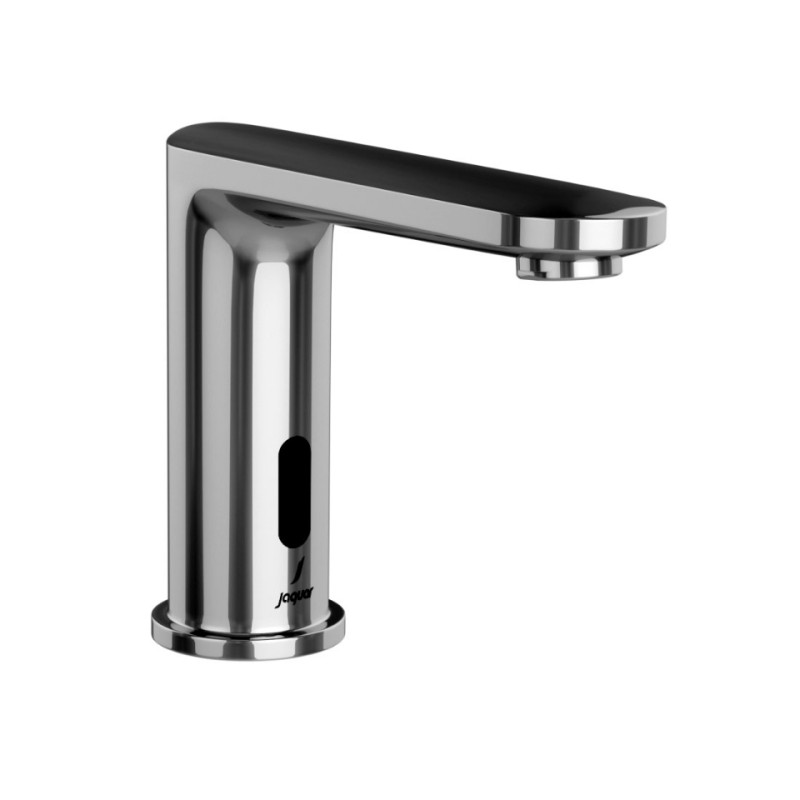

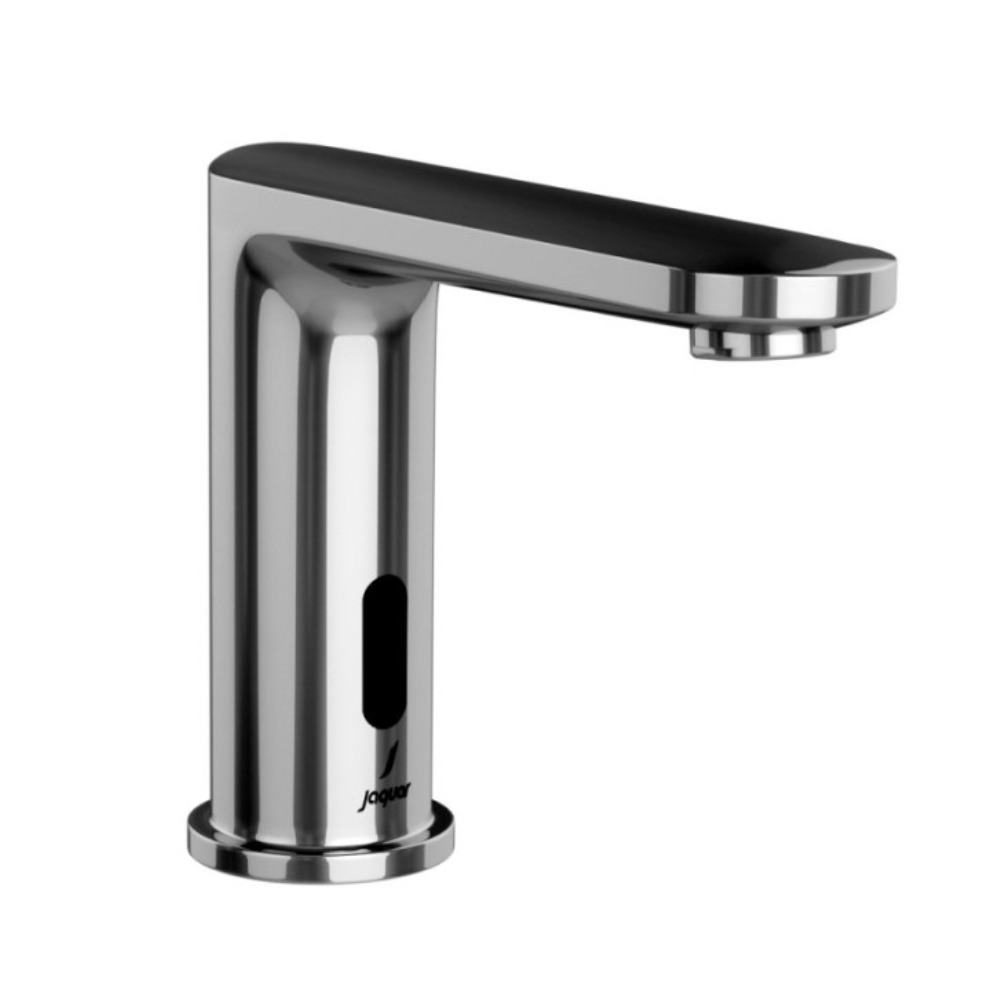

Opal Prime – Sensor Tap
The Opal Prime Sensor Tap is a cutting-edge, deck-mounted faucet designed for wash basins, complete with a control box and pre-mixed water supply kit. This innovative tap features a sensor-activated operation, providing a convenient and hygienic way to control water flow. With its sleek design and advanced technology, the Opal Prime Sensor Tap is perfect for modern bathrooms seeking a blend of style, functionality, and water efficiency.
Product Features
- The Opal Prime Sensor Tap comes with a light indicator that uses a red LED to signal usage, providing a clear visual cue for users.
- The tap supports hot and cold water supply through two inlets, allowing for a comfortable washing experience.
- The maximum water temperature is 65 ℃, ensuring a safe and comfortable experience for users.
- The tap operates within a working temperature range of 0 to 40℃, making it suitable for various environmental conditions.
- The inlet water connection is 1/2”BSP (15mm), and the recommended water pressure is between 1.0 Bar and 5.0 Bar, ensuring compatibility with standard plumbing systems.
Additional Information
In terms of design, the Opal Prime Sensor Tap boasts a sleek and modern aesthetic that fits seamlessly into contemporary bathroom styles. Its chrome finish, achieved through a nickel and chromium plating process, not only adds a touch of luxury but also ensures durability and resistance to corrosion. The tap’s design is carefully crafted to provide a comfortable and intuitive user experience, with a detection range of 10 CM to 22CM and a response time of less than 1 second.
Functionally, the Opal Prime Sensor Tap is designed to provide a convenient and hygienic washing experience. The sensor-activated operation eliminates the need for manual handling, reducing the risk of cross-contamination and making it an ideal choice for public and private bathrooms alike. The tap’s flow rate can be regulated using flow regulators, allowing users to customize water usage according to their needs.
The Opal Prime Sensor Tap prioritizes usability and adjustability, with features such as a self-close override time of 12 seconds and adjustable flow rates. These features not only enhance user comfort but also contribute to water efficiency, making the tap an environmentally friendly choice. The tap’s ergonomic design ensures that users can easily access and operate the sensor, regardless of their age or ability.
Maintenance of the Opal Prime Sensor Tap is straightforward, thanks to its durable construction and easy-to-clean design. The tap’s components, including the solenoid valve and sensor eye, are designed to withstand the rigors of daily use and are protected against intrusion and ingress by IP 66 ratings. Regular cleaning and descaling can help maintain the tap’s performance and extend its lifespan.
The Opal Prime Sensor Tap incorporates several safety features, including thermostatic control and automatic shut-off. The tap’s solenoid valve is designed to operate within a safe pressure range, and the sensor eye is protected against accidental activation. The tap’s power source is a 9V transformer, which is energy-efficient and safe to use.
In terms of quality and certification, the Opal Prime Sensor Tap meets or exceeds various international standards, including WRAS and ACS approvals. The tap’s materials, including brass ingots and rods, are carefully selected to ensure durability and resistance to corrosion. The tap’s finish, achieved through a nickel and chromium plating process, is not only aesthetically pleasing but also provides long-lasting protection against corrosion.
Specifications
| Specification | Detail |
|---|---|
| Flow Rate | 12.15 LPM @ 3 bar |
| Water Temperature | Maximum 65 ℃ |
| Working Temperature | 0 to 40℃ |
| Inlet Water Connection | 1/2”BSP (15mm) |
| Recommended Water Pressure | 1.0 Bar – 5.0 Bar |
| Material Composition | Brass Ingots as per IS:1264-1997, Brass Rod as per IS:319-1989 |
| Solenoid Valve Specification | Operating pressure 1.0 – 5.0 bar, Nominal Voltage : 9 Volt DC (+/- 10%) |
| IP Rating | Protection against intrusion (control box) IP 66, Protection against Ingress (sensor eye) IP 66 |
| Power Source | 9V transformer |
| Power Consumption | Power Consuption (StandBy): < 0.4mW(DC), Power consumption (flushing): 0.4W |
Guarantee
| Coverage | Duration | Terms |
|---|---|---|
| Manufacturing defects | Varies depending on the product and location | Subject to the terms and conditions of the manufacturer |
Package Contents
| Item | Quantity |
|---|---|
| Opal Prime Sensor Tap | 1 |
| Control Box | 1 |
| Pre-mixed Water Supply Kit | 1 |
| 9V Transformer | 1 |
About the Brand
Jaquar is a renowned brand in the bathroom industry, known for its commitment to quality, innovation, and style. With a focus on providing exceptional user experiences, Jaquar’s products are designed to meet the highest standards of performance, durability, and aesthetics. The Opal Prime Sensor Tap is a testament to Jaquar’s dedication to excellence, offering a unique blend of functionality, water efficiency, and sleek design that enhances any bathroom setting.
